Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT
Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT

Brembo GT Big Brake System | (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs - FRONT

Free Shipping to Lower 48 States

PN: GT-1B-.8033A

Cross Drilled

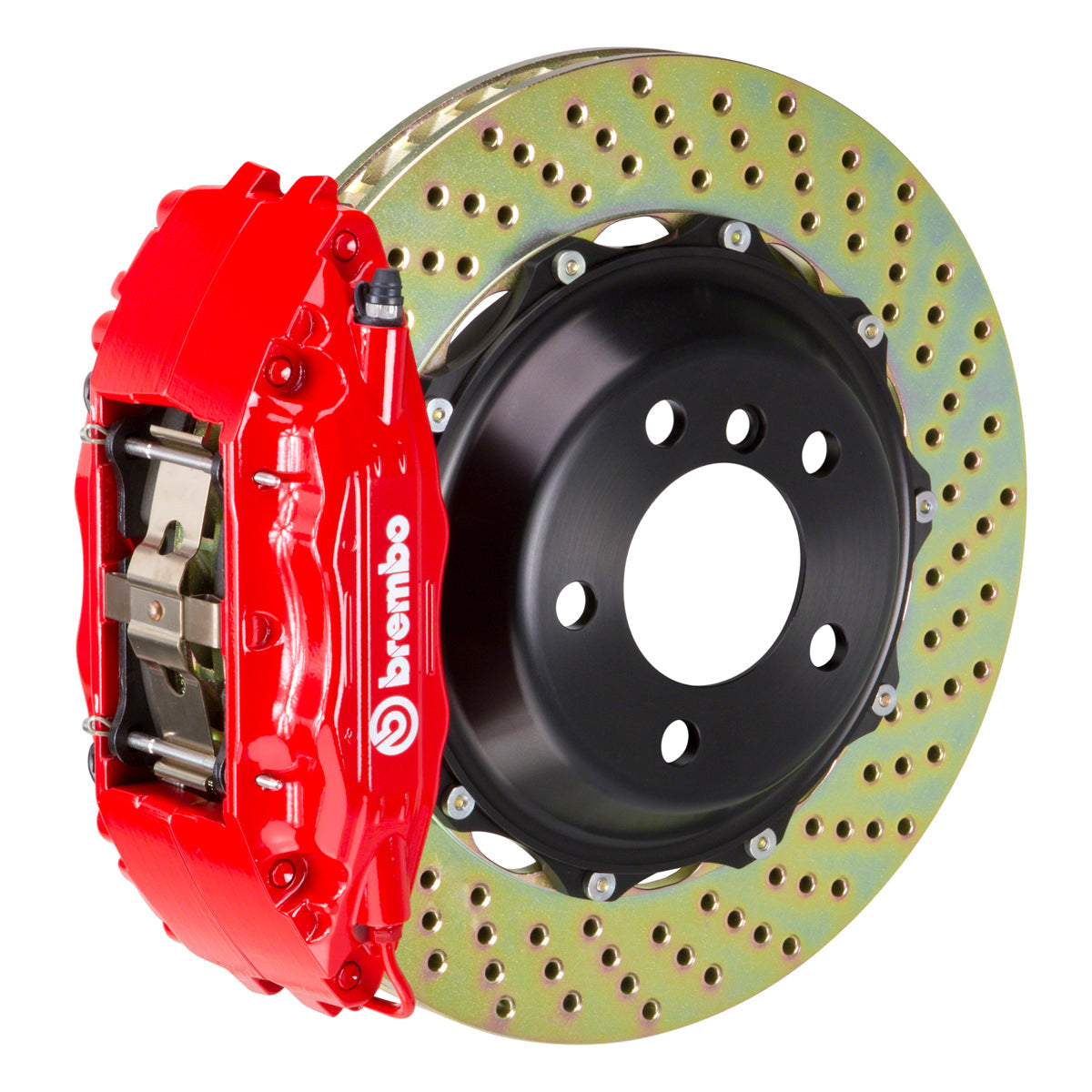

  • Red
    1B1.8033A2

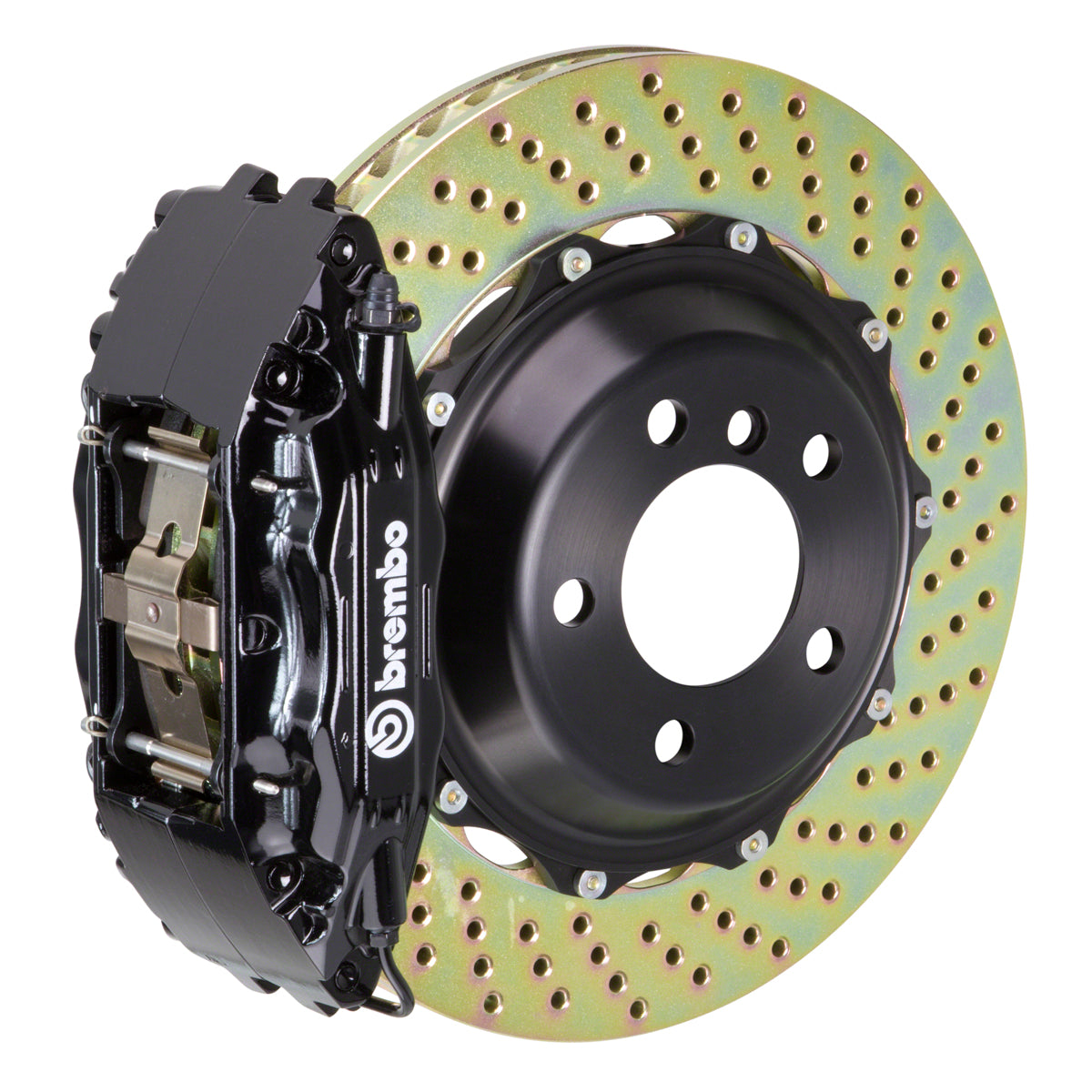

  • Black
    1B1.8033A1

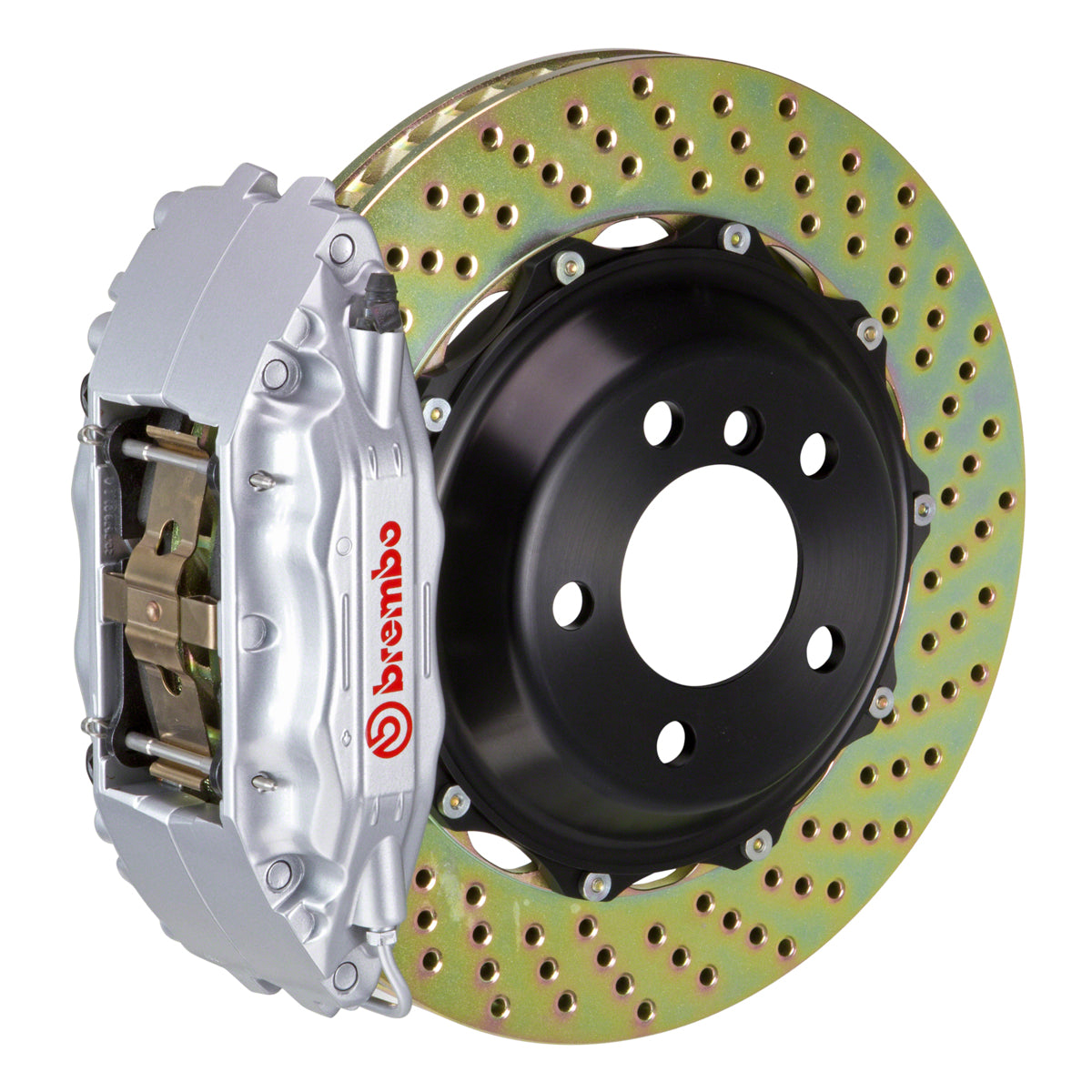

  • Silver
    1B1.8033A3
  TY1
  • Red
    1B2.8033A2
  • Black
    1B2.8033A1
  • Silver
    1B2.8033A3
TY3
  • Red
    1B3.8033A2
  • Black
    1B3.8033A1
  • Silver
    1B3.8033A3



The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.





Product Overview
Product Description: (F) 4-Piston Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Wheel Fitment:

Front or Rear System Shown: Front

Intended Use:

System Dynamics:
Notes: For applications for PCCB equipped models, please contact your distributor



Caliper
Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled / TY1 / TY3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 355mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring



Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application:

  • 1999 - 2004 Carrera C4
