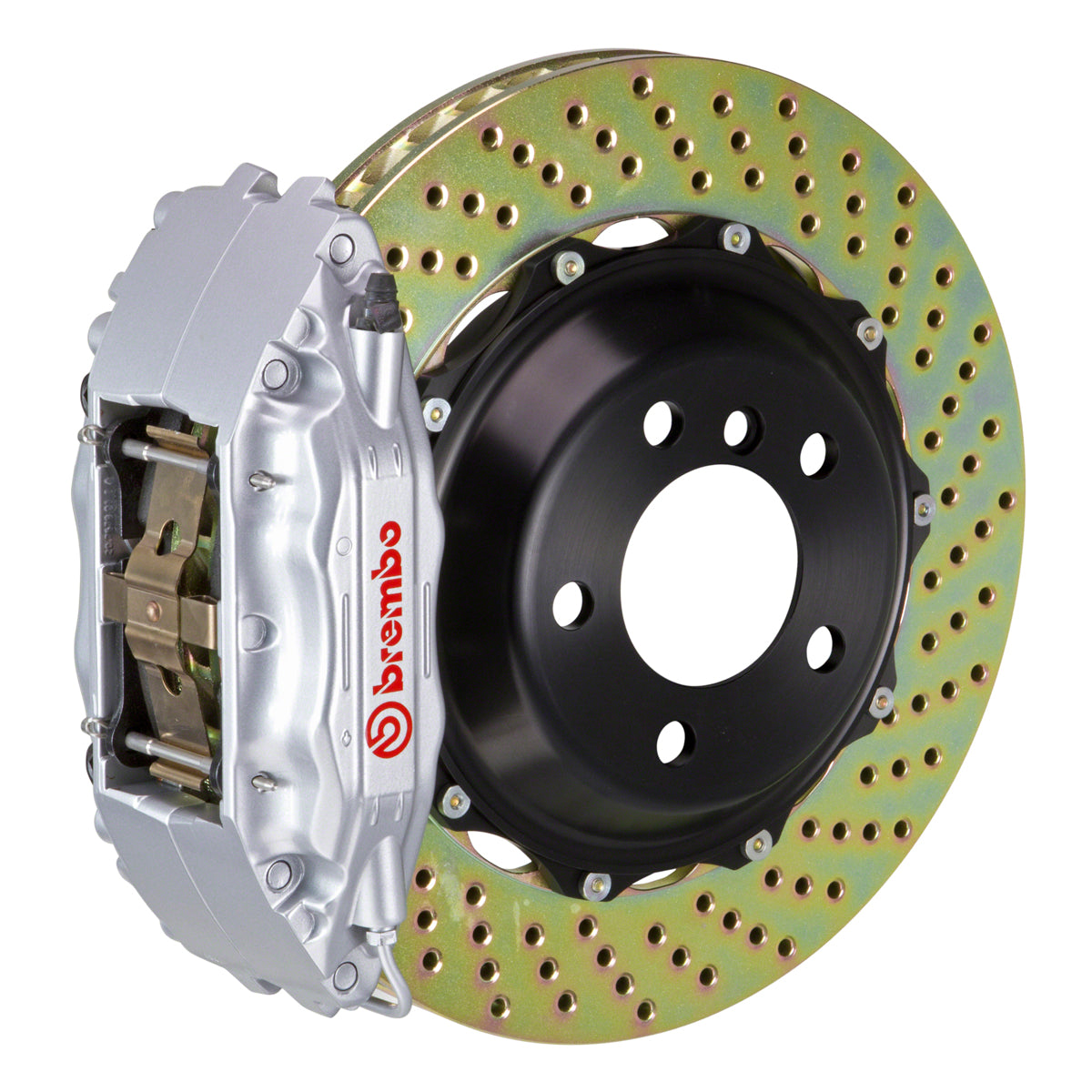

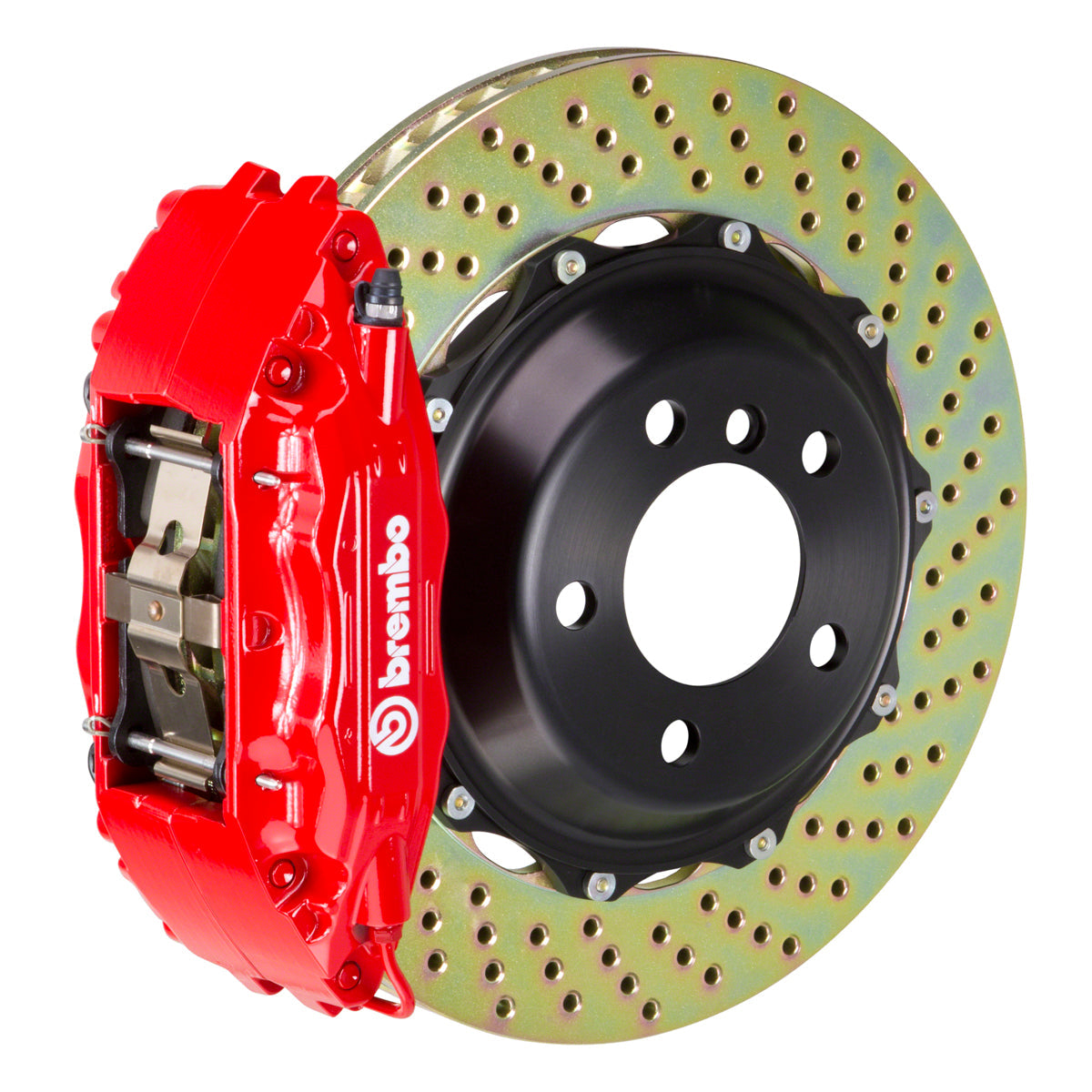

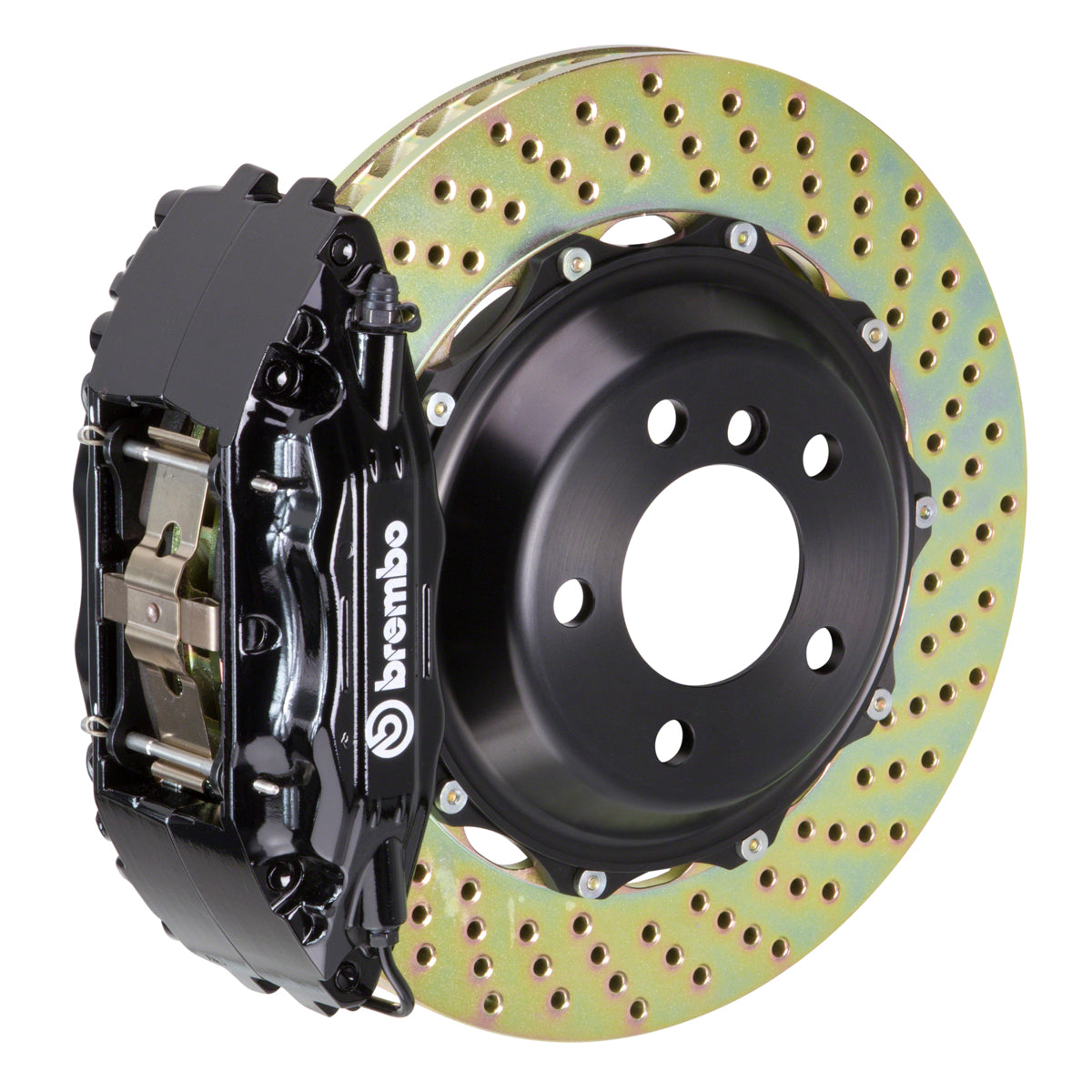

Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs
Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs
Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs
Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs
Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs
Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs

Brembo GT Big Brake System | (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs

Free Shipping to Lower 48 States

PN: GT-1B-.7014A

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.





Product Overview
Product Description: (F) 4-Piston Calipers | 332x32mm (13.1") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment:
Front or Rear System Shown: Front
Intended Use:
System Dynamics:



Caliper
Caliper Body: Cast 2-Piece Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot



Disc
Disc Type: Cross Drilled / Slotted
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 332mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 17mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring



Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1



Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Applications:

  • 2001 - 2009 S60
  • 2001 - 2009 V70
