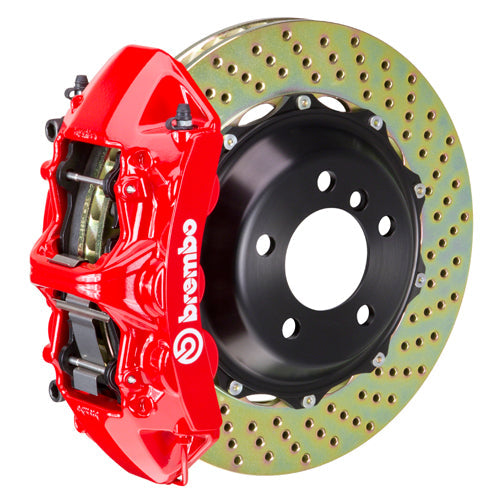

Brembo GT Big Brake System | (F) 6-Piston Monobloc Calipers | 380x32mm (15") 2-Piece Discs - FRONT

  • $4,895.00


Free Shipping to Lower 48 States

PN: GT-1M-.9004A

Cross Drilled
  • Red
    1M1.9004A2
  • Black
    1M1.9004A1
  • Silver
    1M1.9004A3
  • Yellow
    1M1.9004A5
 TY1
  • Red
    1M2.9004A2
  • Black
    1M2.9004A1
  • Silver
    1M2.9004A3
  • Yellow
    1M2.9004A5
TY3
  • Red
    1M3.9004A2
  • Black
    1M3.9004A1
  • Silver
    1M3.9004A3
  • Yellow
    1M3.9004A5

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

The most popular High-Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Lightweight 2-piece discs increase thermal capacity to dramatically reduce brake fade and are available in cross- drilled or slotted designs.

Product Overview
Product Description: (F) 6-Piston Monobloc Calipers | 380x32mm (15") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown: Front

Intended Use:

System Dynamics:
Notes: For applications for PCCB equipped models, please contact your distributor

Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot
Disc
Disc Type: Cross Drilled / TY1 / TY3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 380mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
  • Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material
Pad Compound: Brembo High Performance Brembo High Performance FM1000
Pad Volume / Surface Area: 94.5 | 84
Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application:

  • 1999 - 2004 Carrera C2
  • 2006 - 2012 Cayman 987
  • 2006 - 2012 Cayman 987 S (Excluding PCCB)
  • 2005 - 2012 Boxster 987
  • 2005 - 2012 Boxster 987 S / Spyder (Excluding PCCB)
