Brembo GT Brake System | 6-Piston Monobloc Calipers | 355x32mm (14") 2-Piece Discs - FRONT

  • $4,395.00


Free Shipping to Lower 48 States

PN: GT-1M-.8069A

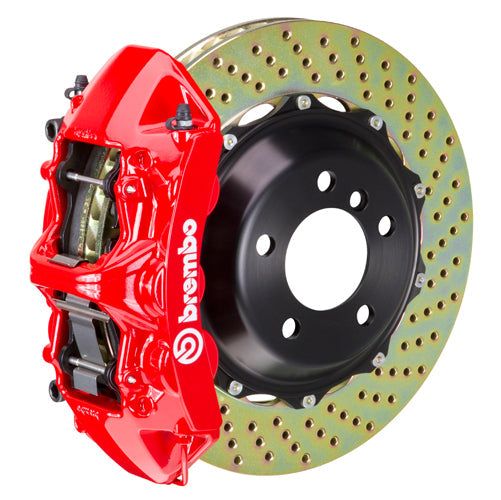

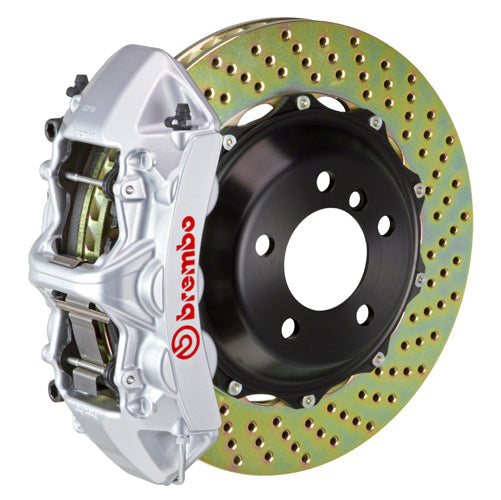

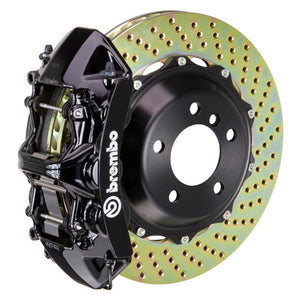

Cross Drilled
  • Red
    1M1.8069A2
  • Black
    1M1.8069A1
  • Silver
    1M1.8069A3
  • Yellow
    1M1.8069A5

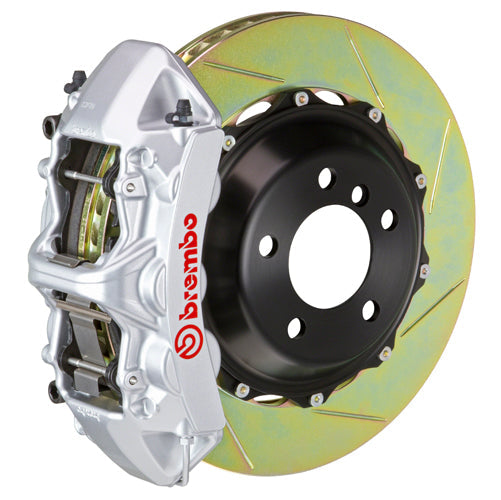

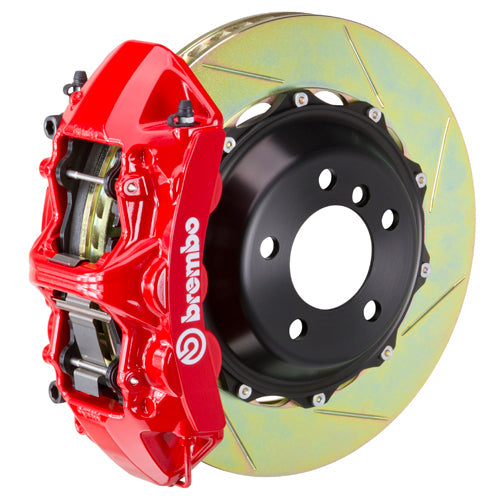

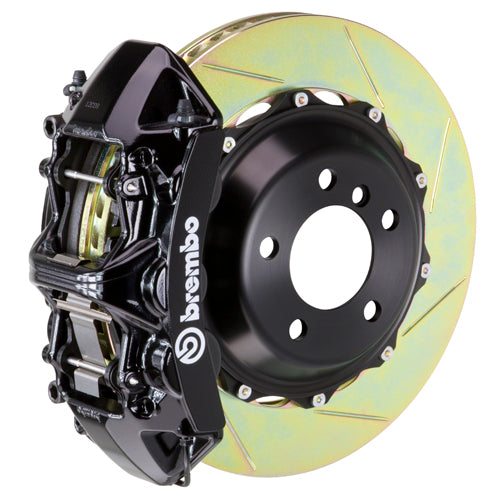

 TY1
  • Red
    1M2.8069A2
  • Black
    1M2.8069A1
  • Silver
    1M2.8069A3

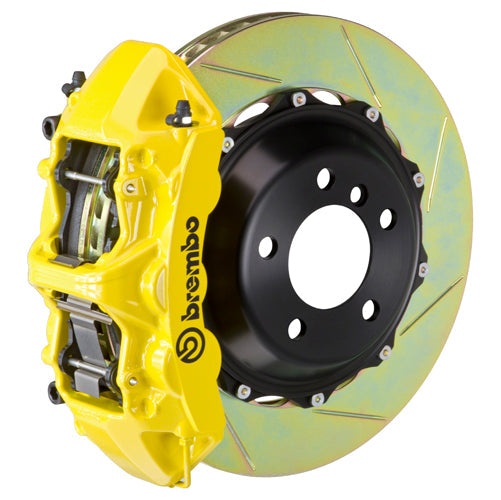

  • Yellow
    1M2.8069A5

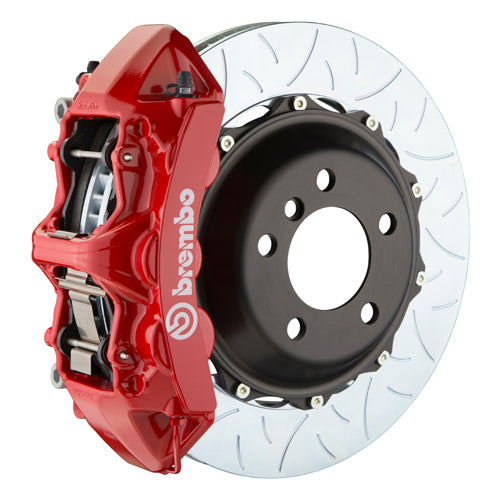

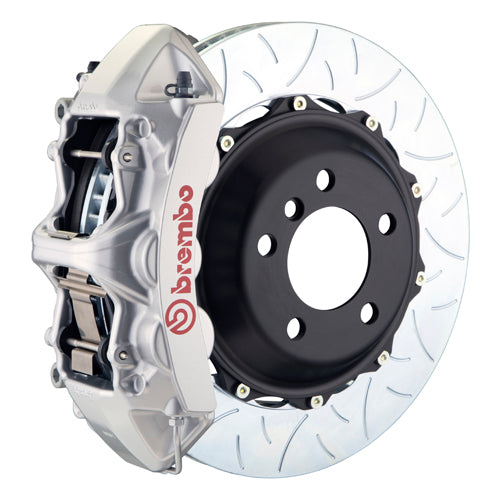

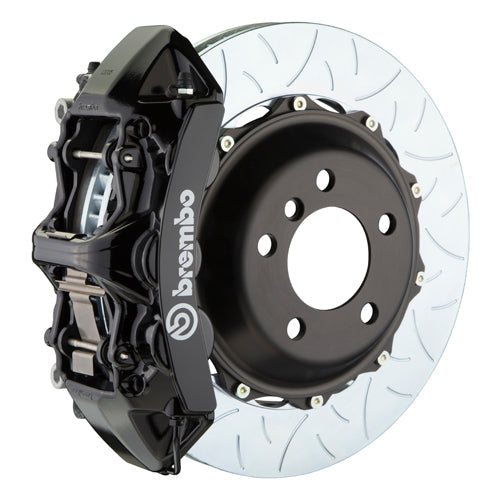

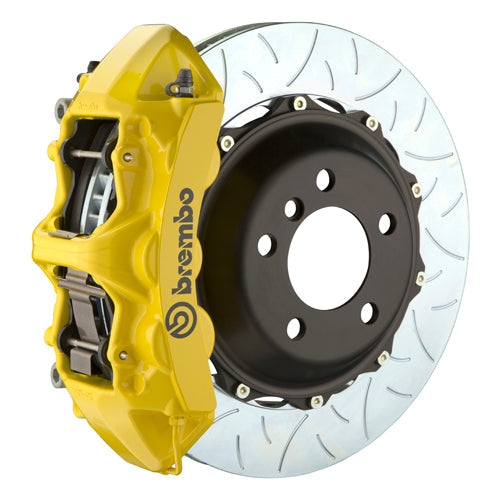

TY3
  • Red
    1M3.8069A2
  • Black
    1M3.8069A1
  • Silver
    1M3.8069A3
  • Yellow
    1M3.8069A5


The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

Product Overview
Product Description:

(F) 6-Piston Monobloc Calipers | 355x32mm (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown: Front
Intended Use:
System Dynamics:
Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot
Disc
Disc Types: Cross Drilled, Slotted, or Type 3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 355mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 72 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 94.5 | 84

Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation



NOTE: All Brembo GT Systems are built to order. Please allow 5-7 business days after placing the order for the item to ship.

 Application:

  • 2022+ BRZ
