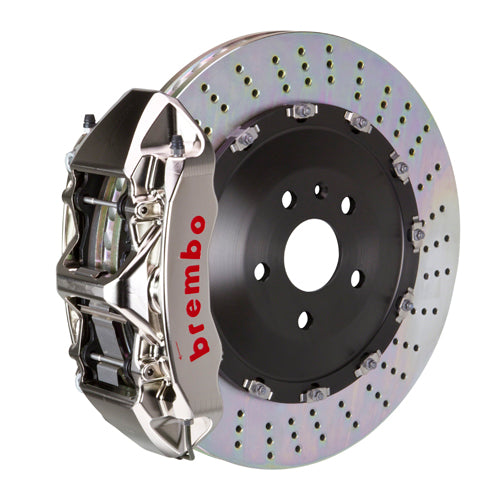

Brembo GTR Big Brake System | (F) 6-Piston Billet Monobloc Calipers | 405x34mm (15.9") 2-Piece Discs - FRONT

  • $9,995.00

+ -

Free Shipping to Lower 48 States

PN: GT-R-1N-.9534A

Cross Drilled
Nickel Plated
1N1.9534AR
 TY1
Nickel Plated
1N2.9534AR
TY3
Nickel Plated
1N3.9534AR


The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

This is the ultimate system intended to be used on the street or track, yet it can be a very potent race system without compromising overall streetability: none of the noise or comfort issues of a race system, yet the qualities of a race caliper such as the strength of billet monobloc construction and corrosion resistance of nickel plating.

Product Overview
Product Description: (F) 6-Piston Cast Monobloc Calipers | 405x34mm (15.9'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Front or Rear System Shown: Front

Intended Use:

System Dynamics:

Caliper
Caliper Body: Billet Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc
Disc Type: Cross Drilled / TY1 / TY3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 405mm
Disc Width (Measurement): 34mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 62mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring


Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 107.3 | 95.4
Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation


Application:

  • 2015 - 2022 Macan S
  • 2015 - 2019 Macan Turbo
  • 2017 - 2022 Macan GTS
