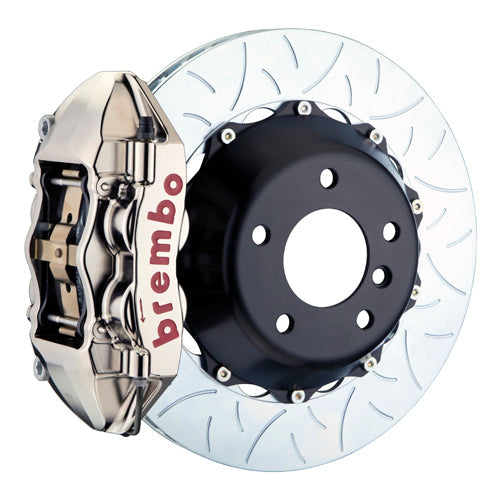

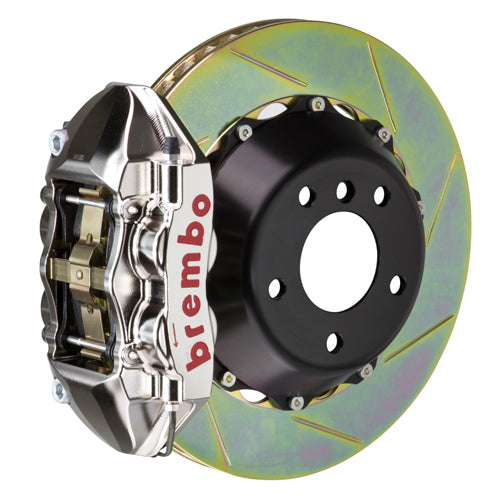

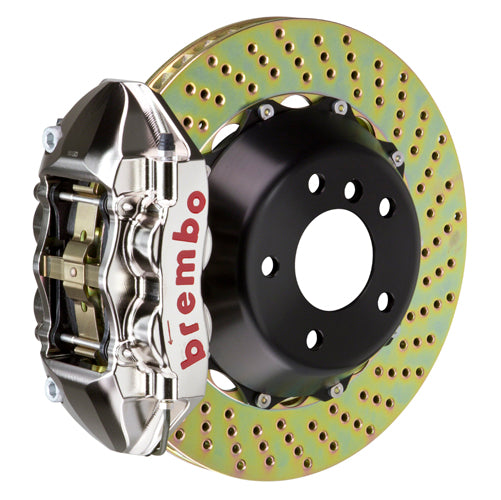

Brembo GTR Big Brake System | (R) 4-Piston Billet Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs - REAR

Free Shipping to Lower 48 States

PN: GT-R-2P-.8019A

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture's System - Advantages far beyond What's simply known as "Big Brakes". As the braking system's primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

This is the ultimate system intended to be used on the street or track, yet it can be a very potent race system without compromising overall streetability: none of the noise or comfort issues of a race system, yet the qualities of a race caliper such as the strength of billet monobloc construction and corrosion resistance of nickel plating.

Product Overview

Product Description: (R) 4-Piston Billet Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Wheel Fitment:

How to Measure Wheels for Required Clearance
Brake Profile Cross Section

Front or Rear System Shown: Rear

Intended Use:

System Dynamics:

Caliper

Caliper Body: Billet Monobloc Radial Mount

Caliper Piston Configuration: 4-Piston

Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc

Disc Type: Cross Drilled / TY1 / TY3

Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating

Disc Diameter: 345mm

Disc Width (Measurement): 28mm

Disc Air Gap (Measurement): 16mm

Disc Annulus (Measurement): 54mm

Disc Construction: 2-Piece Disc Assembly

Disc Vane Design (Measurement): Vented Curved 48 Vane

Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000

Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge

Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Application:

• 1995 - 1998 Carrera C2 / C4

• 1995 - 1998 Carrera C4S / Turbo
